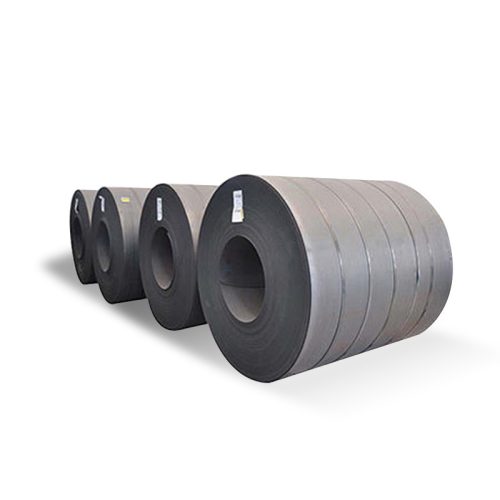

SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil
SPCC cold rolled steel coil is a high-quality product made from low-carbon steel, known for its excellent surface finish and tight dimensional tolerance. This steel coil undergoes a cold rolling process, providing enhanced strength, smoothness, and better formability compared to hot-rolled steel. It is widely used in various industries, including automotive, home appliances, and construction, for manufacturing components like panels, frames, and structural parts. SPCC cold rolled steel coil offers superior durability, weldability, and versatility, making it a preferred choice for businesses requiring reliable and high-performance materials for a variety of applications.
Product Parameters
Product Name | SPCC/SPCC/SPCD/SPCE Cold Rolled Steel Coil |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 45mm-2200mm |
Length | Custom Size |
Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
SPCC Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCCT Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCD Grade: C≦0.10; Mn≦0.50; P≦0.040; S≦0.035
SPCE Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030
SPCF Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030
SPCG Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020
Mechanical Properties
Hardness: Heat Treatment Code HRBS HV10
Annealed A – –
Annealed + Finishing S – –
1/8 hard 8 50~71 95~130
1/4 hard 4 65~80 115~150
1/2 hard 2 74~89 135~185
Full hard 1 ≥85 ≥170
Scope of Application
SPCC/SPCCT: Common & General Use; Characteristics: Suitable for bending processing and simple deep drawing processing, is the most demand varieties; Applications: Refrigerators, rails, switchboards, iron baskets and so on.
SPCD: Drawing & Stamping Use; Characteristics: Second only to SPCE, is the quality of the smaller deviation of the drawing steel plate; Applications: Automobile chassis, roof and so on.
SPCE/SPCF: Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep drawing performance is excellent, after the stamping can get a beautiful surface. Applications: Car fender, rear side panels and so on.
SPCG: Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very low carbon cold rolled steel, excellent deep drawing processability. Applications: Car interior board, surface and so on.
Remarks: SPCCT is users specified the grade of SPCC which need to ensure that the tensile strength and extensibility of the species. SPCF, SPCG will need to ensure that there have non-aging (not due to the occurrence of tensile deformation of the property), after outside factory for 6 months – that is, SPCC, SPCD, SPCE if stored for a long time, will produce mechanical performance changes, especially to reduce the cold stamping performance, it should be used as soon as possible.SPCC series catalog need to make provision for hardness and surface in advance when ordering.
