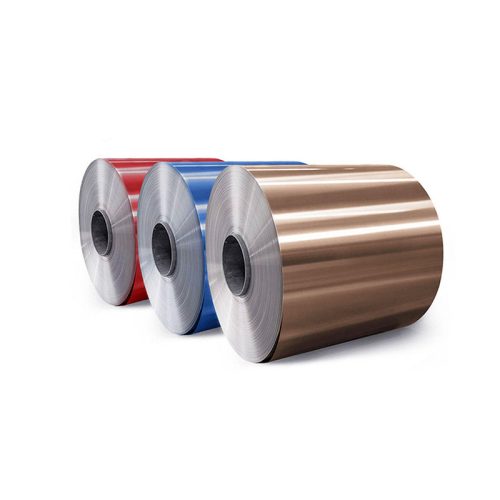

PPGL Steel Coil

Color coated coil is a pre-painted steel or aluminum product with excellent corrosion resistance, durability, and aesthetic appeal. Widely used in construction, home appliances, and transportation, it offers customizable coatings, strong adhesion, and weather resistance, ensuring reliable performance for industrial applications.

PRODUCT DISPLAY

PPGL Steel Coil Description

PPGL is GL steel sheets coated with a colored paint layer.
Characteristics: PPGL provides enhanced corrosion resistance along with a wide range of color choices. It is suitable for architectural and industrial applications in harsh weather conditions.
Uses: Frequently used in the production of roofing, wall cladding, oil tanks, refrigeration equipment, and more.

Color coated coil is a high-quality, pre-painted steel or aluminum product designed for durability and aesthetics. Manufactured through advanced coating techniques, it features uniform color, strong adhesion, and excellent corrosion resistance. The product is widely used in construction, home appliances, transportation, and other industries requiring superior surface performance. With customizable colors and coatings, it meets diverse customer needs while ensuring long-term stability. Our color coated coils comply with international quality standards, offering enhanced weather resistance, scratch protection, and formability. Ideal for B2B applications, they provide cost-effective solutions for manufacturers and project contractors seeking reliable and efficient material options.

Product Parameters

Product Name PPGL Steel Coil
Thickness 0.13mm-0.8mm
Width 600mm-1250mm
Length Support Customization
Color According RAL Color Card (Can provide custom pattern)
Paint PE, SMP, HDP, PVDF
Primer Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer
Coating Thickness Top Coat: 10-30mic, Back Paint: 5-25mic

Surface Treatment
Laminated Film
The process is to coat a transparent organic film (30-50 µm) on the steel coil at high temperature. It has some unique properties, such as fire resistance, fingerprint resistance, excellent durability, anti-fouling ability, etc. Obviously, this treatment method can protect the steel coil well during storage and transportation.
Embossing
Embossed PPGI steel coil design has different patterns. Popular patterns are stucco, rhombus, etc. And it’s customizable. Compared with the smooth steel coil, it has a vivid 3D effect.

Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester SMP
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.

Scope of Application

Construction industry: such as roof, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: For example, car trim panels, train or ship decks, containers, etc.
Electrical equipment: mainly used for making freezers, washing machines, air conditioners and other enclosures. PPGI coils for home appliances have the best quality and the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, etc.
