DC01/DC02/DC03/DC04/DC05/DC06 Cold Rolled Steel Plate

DC cold rolled steel plate offers high strength, excellent surface finish, and precision. Ideal for automotive, construction, and manufacturing applications, it provides superior formability, durability, and weldability, making it a versatile choice for various industries.

PRODUCT DETAILS

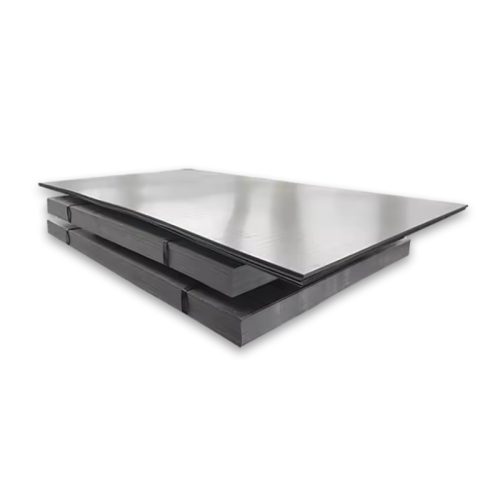

DC01/DC02/DC03/DC04 Cold Rolled Steel Plate

DC cold rolled steel plate is a high-quality, low-carbon steel product designed for precision applications that require smooth surfaces and dimensional accuracy. Manufactured using a cold rolling process, this steel plate offers improved strength, superior formability, and enhanced surface finish compared to hot rolled alternatives. It is widely used in industries such as automotive, construction, and manufacturing for applications including body panels, appliance parts, and structural components. DC cold rolled steel plate is known for its excellent weldability and ability to withstand various environmental conditions. It is a reliable and cost-effective material for a wide range of industrial and commercial uses.

Product Parameters

Product Name DC01/DC02/DC03/DC04 Cold Rolled Steel Plate
Production Process Cold Rolling
Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width 100mm-3000mm
Length 1m-12m, or Customized Size
Thickness 0.1mm-400mm
Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard
Surface Process Ordinary, Wire Drawing, Laminated Film

Chemical Composition

C: max. 0,08 %

Mn: max. 0,40 %

P: max. 0,03 %

S: max. 0,03 %

Mechanical Properties

Steel Grade Yield Strength (MPa) min Tensile Strength (MPa) min Elongation % min Old Description
DC01 ≤280 270-410 28 St 12-03
DC03 ≤240 270-370 34 St 13-03
DC04 ≤210 270-350 38 St 14-03
DC05 ≤180 270-330 40 St 15-03
DC06 ≤170 270-330 41
DC07 ≤150 250-310 44

Scope of Application

DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.

DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.

DC04 is suitable for high deformation requirements.

DC05 is a thermal forming grade, it is suitable for higher forming requirements.

DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.

DC07, this superior deep drawing quality is suitable for highest deformation requirements.
