C12200/TP2 Copper Coil Description
C12200 copper coil is a high-quality copper product known for its excellent electrical and thermal conductivity, making it ideal for electrical and electronic applications. This copper coil is highly resistant to corrosion and offers superior malleability, allowing for easy shaping and customization for various uses. It is commonly used in the production of wires, cables, transformers, and heat exchangers. The durability and efficiency of C12200 copper coil make it the preferred choice for industries such as power generation, telecommunications, and automotive. When you choose C12200, you ensure long-lasting, reliable performance in demanding applications.
Product Parameters
Thickness
0.1-300mm, or customized
Length
100-12000mm, or customized
Width
10-3000mm, or customized
Standard
ASTM, AISI, JIS, GB, DIN, EN
Brand
C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930，
C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,
C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,
C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,
C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200，
T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
Surface
Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required
Certification
ISO, SGS, BV
Payment Method
FOB, CRF, CIF, EXW Acceptable
Port of Loading
Any port in China
Delivery Time
Received 30% after deposit 7-15 working days
Chemical Composition
Copper+Silver
With Ag:
Tin
Sn:
Phosphorus
P:
Lead
Pb:
Nickel
It is:
Iron
Fe:
≥ 99.85
≤ 0.01
0.013~0.050
≤ 0.005
≤≤ 0.01
≤0.05
Antimony
Sb:
Sulphur
S:
Arsenic
As:
Bismuth
Bi:
Oxygen
O:
Impurities:
≤0.002
≤ 0.005
≤ 0.005
≤ 0.002
≤ 0.01
≤ 0.15
Mechanical Properties
Tensile Strength
Kb (MPa):
Elongation
D10 (%):
Hardness:
215~275
≥25
55~100HV
Scope of Application
Uses And Applications of Copper Power Industry Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires. Electronic Industry Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuit Copper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical Industry The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosion Various media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation Industry In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller, Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,
Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraft
Copper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical Industries In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy. The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heating
The induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light Industry Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc. Emerging Industries and High-tech Fields Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.

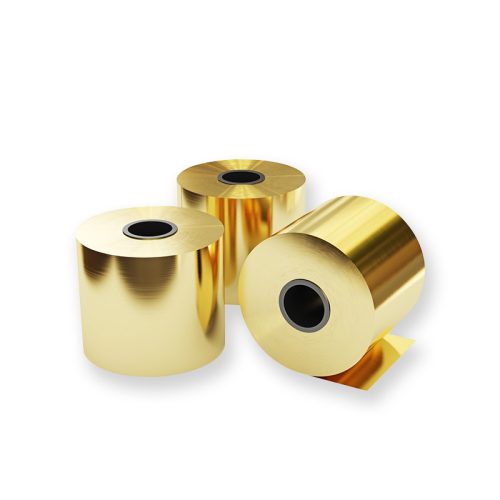

C12200/TP2 Copper Coil
C12200 copper coil offers excellent conductivity, corrosion resistance, and malleability, making it ideal for electrical and industrial applications. Widely used in wires, cables, and transformers, it ensures reliable performance and durability in various sectors.
-
