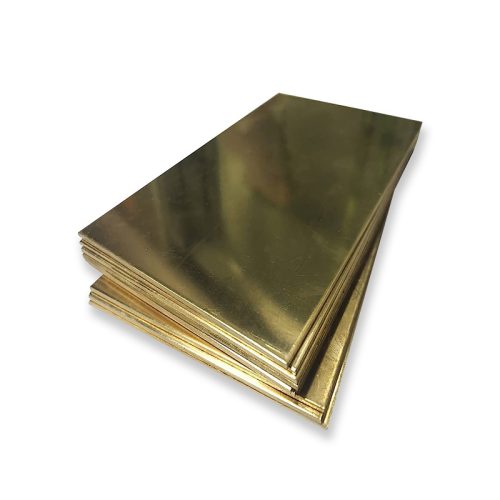

C11000/T2 Copper Plate

C11000 copper plate features high electrical conductivity, excellent corrosion resistance, and superior machinability. Widely used in electrical, industrial, and construction applications, it ensures durability and efficiency. Available in various sizes, it meets international quality standards for reliable performance.

PRODUCT DETAILS

  • C11000/T2 Copper Plate Description

    C11000 copper plate, also known as electrolytic tough pitch (ETP) copper, is a high-purity material with excellent electrical and thermal conductivity. It offers superior corrosion resistance, outstanding ductility, and excellent machinability, making it ideal for electrical components, industrial equipment, and construction applications. This copper plate is widely used in power transmission, grounding systems, and electronic manufacturing due to its high conductivity and reliable performance. C11000 copper meets international quality standards, ensuring durability and precision in various industries. Available in different thicknesses and sizes, it is suitable for diverse fabrication needs, delivering consistent and efficient performance in demanding environments.

    Product Parameters

    Thickness

    0.1-300mm or customized

    Length

    100-12000mm or customized

    Width

    10-3000mm or customized

    Standard

    ASTM, AISI, JIS, GB, DIN, EN, etc.

    Brand

    C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930,

    C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,

    C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,

    C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,

    C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200,

    T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.

    Surface

    Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing as Required

    Certification

    ISO, SGS, BV, etc.

    Payment Method

    FOB, CRF, CIF, EXW Acceptable, etc.

    Port of Loading

    Any Port in China

    Delivery Time

    Received 30% after deposit 7-15 working days



    Chemical Composition

    Copper+Silver

    With Ag

    Tin

    Sn

    Zinc

    Zn

    Lead

    Pb

    Nickel

    It is

    Iron

    Fe

    ≥ 99.90

    ≤ 0.002

    ≤ 0.005

    ≤ 0.005

    ≤ 0.005

    ≤ 0.005

    Antimony

    Sb

    Sulphur

    S

    Arsenic

    As

    Bismuth

    Bi

    Oxygen

    O

    Impurity

    ≤ 0.002

    ≤ 0.005

    ≤ 0.002

    ≤0.001

    ≤ 0.06

    ≤0.1



    Mechanical Properties

    Tensile Strength

    Kb (MPa)

    Elongation

    D10 (%)

    Elongation

    D5 (%)

    ≥ 275

    ≥ 5

    ≥10



    Scope of Application

    Uses and Applications of Copper
    Power Industry Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.
    Electronic Industry Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuit

    Copper replaces aluminum in silicon chips for interconnect lines and lead frames.

    Energy and Petrochemical Industry The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosion

    Various media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.

    Transportation Industry In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,

    Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,

    Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraft

    Copper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.

    Mechanical and Metallurgical Industries In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.

    The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heating

    The induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.

    Light Industry Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.
    Emerging Industries and High-tech Fields Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.
