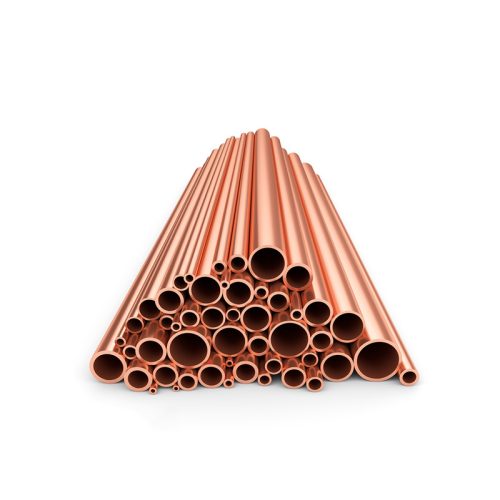

C10100/TU2 Copper Pipe Description
C10100 copper pipe is known for its superior conductivity, making it an ideal choice for electrical, plumbing, and HVAC systems. It offers exceptional corrosion resistance, ensuring long-lasting performance in various environments. Widely used in industrial and residential applications, C10100 copper pipe is highly durable and resistant to wear and tear, providing reliable fluid and gas transportation. Its versatility and efficiency make it a top choice for projects that demand high-quality materials. Choose C10100 copper pipe for your construction or repair needs to ensure lasting reliability and performance in every application.
Product Parameters
Outer Diameter
2mm-300mm, or customized
Wall Thickness
0.2mm-50mm, or customized
Length
Customized
Standard
ASTM, AISI, JIS, GB, DIN, EN
Brand
C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930,
C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,
C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,
C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,
C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200,
T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.
Surface Finish
Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required
Certification
ISO, SGS, BV
Payment Method
FOB, CRF, CIF, EXW Acceptable
Port of Loading
Any port in China
Delivery Time
Received 30% after deposit 7-15 working days
Chemical Composition
Copper
With:
Calcium
Ca:
Zinc
Zn:
Lead
Pb:
Phosphorus
P:
Mercury
Hg:
≥ 99.90
≤ 0.0001
≤ 0.0001
≤ 0.001
≤ 0.0003
≤ 0.0001
Selenium
Se:
Sulphur
S:
Tellurium
You:
Bismuth
Bi:
Oxygen
O:
Impurity:
≤ 0.001
≤ 0.0018
≤ 0.001
≤ 0.001
≤ 0.001
–
Mechanical Properties
Tensile Strength
Kb (MPa):
Elongation
D10 (%):
Elongation
D5 (%):
≥ 275
≥ 5
≥ 10
Scope of Application
Uses and Applications of Copper Power Industry Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires. Electronic Industry Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuit Copper replaces aluminum in silicon chips for interconnect lines and lead frames.
Energy and Petrochemical Industry The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosion Various media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.
Transportation Industry In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller, Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,
Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraft
Copper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.
Mechanical and Metallurgical Industries In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy. The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heating
The induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.
Light Industry Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc. Emerging Industries and High-tech Fields Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.
