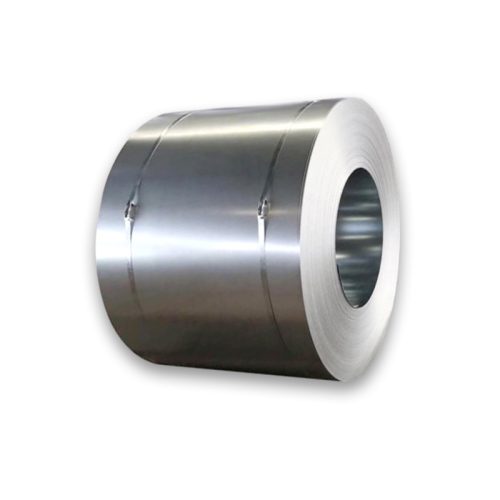

A514 Carbon Steel Coil

A514 carbon steel coil is a high-strength, durable material ideal for heavy-duty applications like construction and machinery. Known for its excellent wear resistance and weldability, it provides reliable performance in demanding industrial environments.

PRODUCT DETAILS

A514 Carbon Steel Coil Description

A514 carbon steel coil is a high-strength, alloy steel known for its exceptional durability and resistance to wear and abrasion. This steel coil is commonly used in heavy-duty applications such as construction, manufacturing, and machinery, including crane components, structural beams, and mining equipment. A514 carbon steel coil offers excellent welding properties and can withstand high-stress environments, making it an ideal choice for industries that require high-performance materials. Its enhanced mechanical properties, combined with its ability to endure harsh conditions, make A514 a reliable and cost-effective solution for demanding industrial applications.

Product Parameters

Product Name A514 Carbon Steel Coil
Production Process Hot Rolling, Cold Rolling
Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width 45mm-2200mm
Length Custom Size
Thickness Hot Rolling: 2.75mm-100mm
Cold Rolling: 0.2mm-3mm
Delivery Conditions Rolling, Annealing, Quenching, Tempered or Standard
Surface Process Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A514 C Mn P S Ni Cr Mo
Grade A 0.15-0.21 0.80-1.10 0.035 0.4-0.8 0.5-0.8 0.18-0.28
Grade B 0.12-0.21 0.70-1.0 0.035 0.20-0.35 0.4-0.65 0.15-0.25
Grade C 0.1-0.2 1.10-1.5 0.035 0.15-0.30 0.15-0.30
Grade E 0.12-0.20 0.4-0.7 0.035 0.2-0.4 1.40-2.0 0.4-0.6
Grade F 0.1-0.2 0.60-1.0 0.035 0.15-0.35 0.70-1.0 0.4-0.65 0.4-0.6
Grade H 0.12-0.21 0.95-1.3 0.035 0.20-0.35 0.3-0.7 0.4-0.65 0.2-0.3
Grade J 0.12-0.21 0.45-0.7 0.035 0.20-0.35 0.50-0.65

Mechanical Properties

A514 Thickness mm Yield Strength Min Mpa Tensile Strength Mpa Elongation Rate Min %
20 690 760-895 18
20-65 690 760-895 18
65-150 620 690-895 18

Physical Performance

Physical Performance Metric Imperial
Density 7.85 g/cm3 0.284 lb/in³

Scope of Application

ASTM A514 steel plate is used where welding, processing, and ultra-high-strength steel are required to reduce weight or meet high-strength requirements. ASTM A514 steel plate is a commonly used structural steel in building construction, used in cranes or other large machinery that bears high loads.
