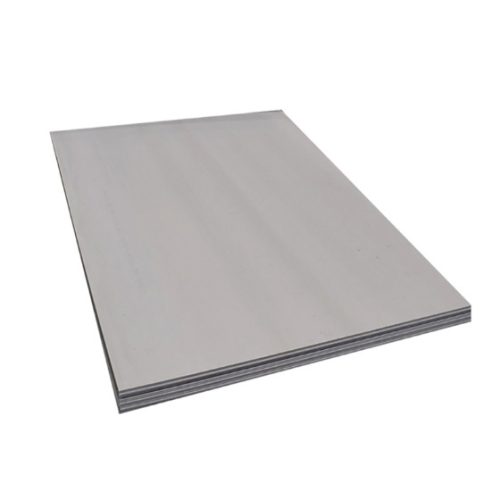

A283/Q195 Cold Rolled Steel Plate

A283 cold rolled steel plate is a versatile, low-carbon steel known for excellent weldability and formability. Ideal for structural applications, it provides reliable strength and durability in industries such as construction, automotive, and manufacturing.

PRODUCT DETAILS

A283 cold rolled steel plate is a low-carbon steel product designed for use in applications requiring good formability and strength. This steel plate is widely used in the construction, automotive, and manufacturing industries, where it serves as a reliable material for structural components and machinery. A283 cold rolled steel plate offers excellent weldability, smooth surface finish, and dimensional accuracy, making it an ideal choice for precision applications. Known for its cost-effectiveness, it provides a balance of performance and durability, meeting industry standards for quality and reliability. A283 cold rolled steel plate is perfect for industries requiring versatile, high-quality materials.

Product Parameters

Product Name A283/Q195 Cold Rolled Steel Plate
Production Process Hot Rolling, Cold Rolling
Material Standards AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE,  etc.
Width 100mm-3000mm
Length 1m-12m, or Customized Size
Thickness 0.1mm-400mm
Delivery Conditions Rolling, Annealing, Quenching, Tempered Or Standard
Surface Process Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A283 C max. Mn max. P max. S max. Si (Greater1 inch, less than 1/2 inch) Si (Greater1/2 inch) Cu min.
Grade A 0.14 0.90 0.035 0.04 0.40 0.15-0.40 0.20
Grade B 0.17 0.90 0.035 0.04 0.40 0.15-0.40 0.20
Grade C 0.24 0.90 0.035 0.04 0.40 0.15-0.40 0.20
Grade D 0.27 0.90 0.035 0.04 0.40 0.15-0.40 0.20

Mechanical Properties

A283 Tensile Strength Yield Strength min. Elongation Rate 8 Inches Elongation Rate 2 Inches
Grade A 45000-60000 psi 310-415 MPa 24000 psi 165 MPa 27% min. 30% min.
Grade B 50000-65000 psi 345-450 MPa 27000 psi 185 MPa 25% min. 28% min.
Grade C 55000-75000 psi 380-515 MPa 30000 psi 205 MPa 22% min. 25% min.
Grade D 60000-80000 psi 415-550 MPa 33000 psi 230 MPa 20% min. 23% min.

Physical Performance

Physical Performance Metric Imperial
Density 7.80 g/cc 0.282 lb/in³

Scope of Application

ASTM A283 steel plate is a kind of low carbon steel with high strength and good formability. It is easy to process and manufacture, and can be safely welded by various welding methods. ASTM A283 steel plate is a structural carbon steel plate used for low or medium tensile strength applications. ASTM A283 steel plate is used in the manufacture of riveted, bolted and welded structures for storage tanks and cryogenic control vessels, bridges and buildings, including prefabricated buildings, warehouses and industrial commercial structures.
