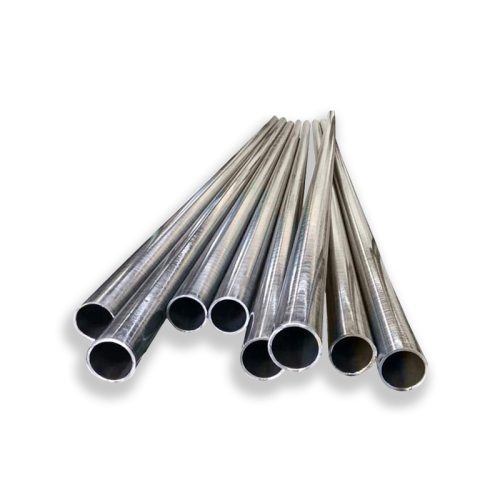

A106 Grade B Steel Pipe

A106 Grade B steel pipe is a high-strength, carbon steel pipe designed for high-temperature and high-pressure applications. Ideal for the oil and gas, power, and chemical industries, it offers excellent durability, weldability, and corrosion resistance.

PRODUCT DETAILS

A106 Grade B Steel Pipe Description

A106 Grade B steel pipe is a high-quality carbon steel pipe designed for high-temperature and high-pressure applications. Widely used in industries such as oil and gas, power generation, and chemical processing, this pipe offers excellent strength, durability, and resistance to corrosion. A106 Grade B steel pipe is suitable for conveying steam, water, and gases in demanding environments. It is available in both seamless and welded options, providing flexibility for various industrial applications. Known for its exceptional weldability and mechanical properties, A106 Grade B steel pipe meets industry standards for reliability and long-lasting performance in critical systems.

Product Parameters

Product Name A106 Grade B Steel Pipe
Standard EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter Seamless: 1/4″-36″ Welding: 21.3mm-3620mm
Round Tube: 1/2″-10″ Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness Seamless: 1.25mm-50mm Welding: 1.65mm-65mm
Length 3-12 meters, Support customization
Surface Process Bright, Polished, Black
Other Services Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A106 C Mn P S Si Cr Cu Mo Ni V
Grade A 0.25 0.27-0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
Grade C 0.35 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08

Mechanical Properties

A106 Grade A Grade B Grade C
Tensile Strength min. psi 48,000 60,000 70,000
Yield Strength min. psi 30,000 35,000 40,000

Scope of Application

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers and ships. These pipes must transport fluids and gases with high temperature and pressure levels.

PRODUCT DISPLAY

FACTORY DISPLAY
